Name: Spiral Submerged Arc Welded Pipe SSAW
SKU: 0

Request a Quote

Carbon Steel Pipe/Tube



Location： HOME > CARBON STEEL > Carbon Steel Pipe/Tube > Spiral Submerged Arc Welded Pipe SSAW

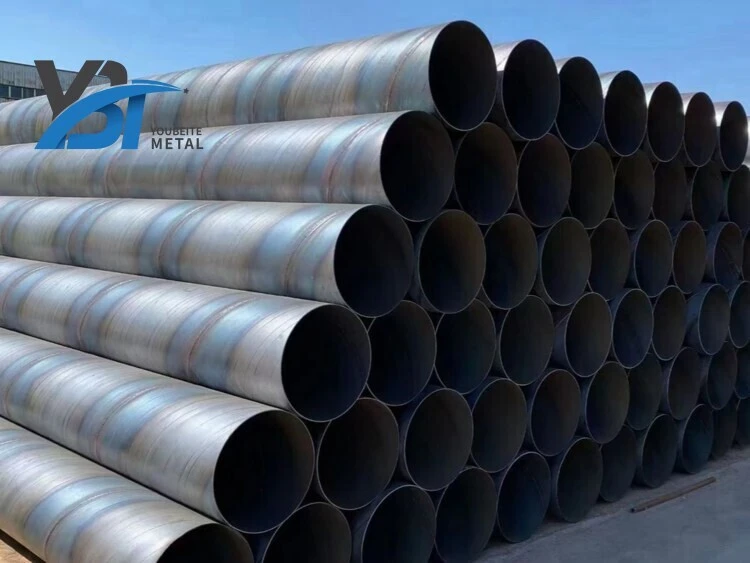

Spiral Submerged Arc Welded Pipe SSAW

Available Carbon Steel Grades:A36, A516, Q195, Q235/Q235B, Q275, Q345/Q345B，For more material grades, Please click

Payment Term:TT,L/C,etc

Price Term:Ex-Work,FOB,CNF,CFR,etc

MOQ:1Ton

Delivery Time:Usually 7-30days, or upon negotiation

If you have any questions, please feel free to contact us.

8618961806236

sale2@ybtmetalproducts.com

Request a Quote

PRODUCT DESCRIPTION

Spiral Submerged Arc Welded Pipe SSAW Description

Submerged arc welding is an important welding method. Its inherent advantages include stable welding quality, high welding productivity, no arc light and little smoke, making it an ideal choice in the production of important steel structures such as pressure vessels, pipe section manufacturing, box beam and column manufacturing. The strength of SSAW spiral welded pipes is generally higher than that of straight seam welded pipes. Welded pipes with larger diameters can be produced from narrower billets, and welded pipes with different diameters can also be produced from billets of the same width.

Product Parameters

Product Name	Spiral Submerged Arc Welded Pipe SSAW
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	219.1mm-3580mm
Wall Thickness	3.2mm-25.4mm
Length	5.8 meters-12.5 meters, Support customization
Manufacturing Type	Spiral Welding

Product Material

Standard	Material
GB/T3091	Q235B, Q345A, Q345B
GB/T9711-2011	L210, L245, L290, L320, L360, L390, L415, L450, L485
API 5L PSL1	Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70, X80
API 5L PSL2	Gr.B, X42, X46, X52, X56, X60, X65, X70, X80
EN10217	P235TR1, P235TR2, P265TR1, P265TR2
ASTM A252	A252 Gr.2 , A252 Gr.3

Chemical Composition & Mechanical Properties

Standard	Grade	Chemical Composition (%)					Mechanical Properties (min)
Standard	Grade	C	Si	Mn	P	S	Tensile Strength (Mpa)	Yield Strength (Mpa)
API 5CT	H40	-	-	-	-	0.03	417	417
	J55	-	-	-	-	0.03	517	517
	K55	-	-	-	-	0.3	655	655
API 5L PSL 1	A	0.22	-	0.9	0.03	0.03	335	335
	B	0.26	-	1.2	0.03	0.03	415	415
	X42	0.26	-	1.3	0.03	0.03	415	415
	X46	0.26	-	1.4	0.03	0.03	435	435
	X52	0.26	-	1.4	0.03	0.03	460	460
	X56	0.26	-	1.4	0.03	0.03	490	490
	X60	0.26	-	1.4	0.03	0.03	520	520
	X65	0.26	-	1.45	0.03	0.03	535	535
	X70	0.26	-	1.65	0.03	0.03	570	570
API 5L PSL 2	B	0.22	0.45	1.2	0.025	0.015	415	415
	X42	0.22	0.45	1.3	0.025	0.015	415	415
	X46	0.22	0.45	1.4	0.025	0.015	435	435
	X52	0.22	0.45	1.4	0.025	0.015	460	460
	X56	0.22	0.45	1.4	0.025	0.015	490	490
	X60	0.12	0.45	1.6	0.025	0.015	520	520
	X65	0.12	0.45	1.6	0.025	0.015	535	535
	X70	0.12	0.45	1.7	0.025	0.015	570	570
	X80	0.12	0.45	1.85	0.025	0.015	625	625
ASTM A53	A	0.25	0.1	0.95	0.05	0.045	330	330
ASTM A53	B	0.3	0.1	1.2	0.05	0.045	415	415
ASTM A252	1	-	-	-	0.05	-	345	345
	2	-	-	-	0.05	-	414	414
	3	-	-	-	0.05	-	455	455
EN 10217-1	P195TR1	0.13	0.35	0.7	0.025	0.02	320	320
	P195TR2	0.13	0.35	0.7	0.025	0.02	320	320
	P235TR1	0.16	0.35	1.2	0.025	0.02	360	360
	P235TR2	0.16	0.35	1.2	0.025	0.02	360	360
	P265TR1	0.2	0.4	1.4	0.025	0.02	410	410
	P265TR2	0.2	0.4	1.4	0.025	0.02	410	410
EN 10217-2	P195GH	0.13	0.35	0.7	0.025	0.02	320	320
	P235GH	0.16	0.35	1.2	0.025	0.02	360	360
	P265GH	0.2	0.4	1.4	0.025	0.02	410	410
EN 10217-5	P235GH	0.16	0.35	1.2	0.025	0.02	360	360
EN 10217-5	P265GH	0.2	0.4	1.4	0.025	0.02	410	410
EN 10219-1	S235JRH	0.17	-	1.4	0.04	0.04	360	360
	S275JOH	0.2	-	1.5	0.035	0.035	410	410
	S275J2H	0.2	-	1.5	0.03	0.03	410	410
	S355JOH	0.22	0.55	1.6	0.035	0.035	470	470
	S355J2H	0.22	0.55	1.6	0.03	0.03	470	470
	S355K2H	0.22	0.55	1.6	0.03	0.03	470	470

Scope of Application

Petroleum and natural gas industry, chemical industry, power industry, flammable liquid and incombustible liquid pipeline and building structure, water supply and drainage engineering, urban construction.

CARBON STEEL PRODUCT DETAILS

STAINLESS STEEL PRODUCT DETAILS

ALLOY STEEL PRODUCT DETAILS

WAREHOUSE

FAQ

Q: How do you control quality?

A : Mill Test Certification is supplied with shipment, Third Party Inspection isavailable.and we also get ISO,SGS,Alibaba Verified.

Q : What are the advantages of your company?

A : We have many professionals,technical personnel, more competitiveprices and best after-dales service than other steel companies.

Q : What extra services do you offer?

A : We can provide you with roll splitting, size cutting, surface treatment(galvanizing, coating and sandblasting) and other services according toyour requirements.

Q: How can l get a quotation?

A : Kindly provide us your details request (item No, style, logo, size, material, surface treatment, quantity etc.) the more detailed the better, leave us an inquiry or email to us and we will response promptly!

Q : How to get a free sample?

A : We can provide our existing similar samples for free to check the style and quality! For sample with your own logo or design, mold fee will be charged base on specification.

Q : What's the payment method?

A : It is very convenient And TT,LC...are all available.

Q : What's the process of order?

A : Send us Inquiry →get quotation → payment done →open mold and make samples →deliver you samples or send you pictures of samples for approval → mass production.

Q : When can l expect the customized product to be finished?

A : Sample:7-10 working days (Standard).Bulk order: 10-25 working days (Standard). If you have any other questions, please feel free to contact us!
