ASTM A36 Angle Steel Bar

Available Carbon Steel Grades:ASTM A36，For more material grades, Please click

Payment Term:TT,L/C,etc

Price Term:Ex-Work,FOB,CNF,CFR,etc

MOQ:1Ton

Delivery Time:Usually 7-30days, or upon negotiation

If you have any questions, please feel free to contact us.

8618961806236

sale2@ybtmetalproducts.com

Request a Quote

PRODUCT DESCRIPTION

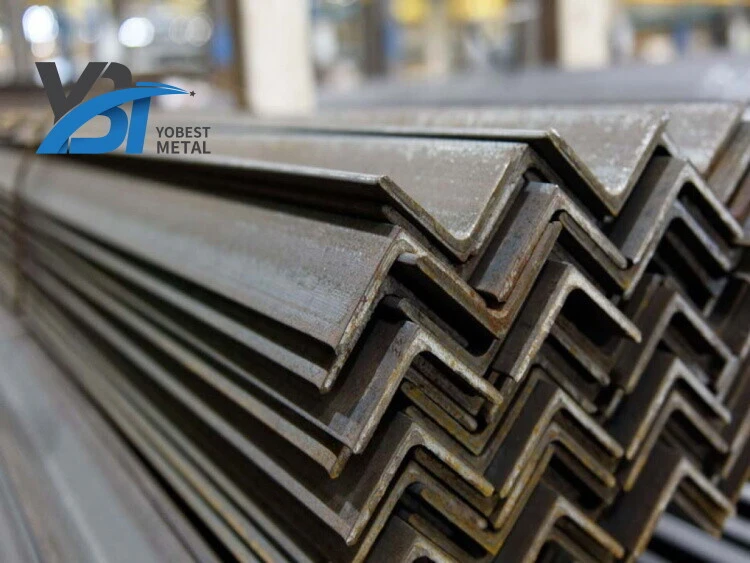

Hot rolled ASTM A36 steel angle bar is the most widely used structural steel by the construction industry as its very economical cost. Structural mild A36 angles are manufactured by rolling pre-heated blooms into an angle shape. Commonly the angle beam shows 90 degree; other degrees will be available on your order. All our metal angles are produced under strict quality controls to make sure that their conformity to ASTM A36 specification.

A36 steel angle covers unequal and equal angle steel according to the depth of legs. Unequal angle steels or L-shaped steels as well as equal angle steels are necessary components for building communication tower, power tower, workshops, steel structure buildings and other engineering projects. Apart from industrial and engineering applications, angle iron could be found in our everyday life like industrial shelve, classical coffee table and so on.

Product description:

Item: A36 Angle Steel.
Standard: ASTM A36.
Technology: Hot Rolled.
Type: Equal & Unequal.
Surface: black or galvanized.
Equal angle:
- Size: 20 × 20 mm to 200 × 200 mm.
- Thickness: 3 to 20 mm.
- Length: 6 m, 9 m, 12 m or per your request.
Unequal angle:
- Size: 30 × 20 to 250 × 90.
- Thickness:3 to 10 mm.
- Length: 6 m, 9 m, 12 m or per your request.

A36 structural steel angle features & benefits:

Low-cost material compared to HSLA steels.
General for construction & industrial applications.
Galvanized A36 steel angles increase resistance to corrosion.
Weldable, formable and machinable.

A36 carbon steel angle chemical composition
Steel Grade	Styles	Carbon, max, %	Manganese, %	Phosphorus, max, %	Sulfur, max, %	Silicon, %
A36	Steel Shapes	0.26	--	0.04	0.05	≤0.40

Note: Copper content is available when your order is specified.

A36 carbon steel angle mechanical property
Steel Grade	Styles	Tensile Strength, ksi [MPa]	Yield Point, min, ksi [MPa]	Elongation in 8 in. [200 mm], min, %	Elongation in 2 in. [50 mm], min, %
A36	Steel Shapes	58 - 80 [400 - 550]	36 [250]	20	21

ASTM A36 equal angle steel bar specification:

A36 equal angle steel specification
Item	Leg 1 (mm)	Leg 2 (mm)	Thickness (mm)	Weight (kg/m)	Item	Leg 1 (mm)	Leg 2 (mm)	Thickness (mm)	Weight (kg/m)
1	20	20	3	0.889	45	80	80	7	8.525
2	20	20	4	1.145	46	80	80	8	9.658
3	25	25	3	1.124	47	80	80	10	11.874
4	25	25	4	1.459	48	90	90	6	8.35
5	30	30	3	1.373	49	90	90	7	9.656
6	30	30	4	1.786	50	90	90	8	10.946
7	35	35	3	1.578	51	90	90	10	13.476
8	35	35	4	2.072	52	90	90	12	15.94
9	35	35	5	2.551	53	100	100	6	9.366
10	40	40	3	1.852	54	100	100	7	10.83
11	40	40	4	2.422	55	100	100	8	10.276
12	40	40	5	1.976	56	100	100	10	15.12
13	44	44	3	2.002	57	100	100	12	17.898
14	44	44	4	2.638	58	100	100	14	20.611
15	38	38	3	1.719	59	100	100	16	23.257
16	38	38	4	2.261	60	110	110	7	11.928
17	48	48	3	2.19	61	110	110	8	13.532
18	48	48	4	2.889	62	110	110	10	16.69
19	48	48	5	3.572	63	110	110	12	19.782
20	50	50	3	2.332	64	110	110	14	22.809
21	50	50	4	3.059	65	125	125	8	15.504
22	50	50	5	3.77	66	125	125	10	19.133
23	50	50	6	4.465	67	125	125	12	22.692
24	56	56	3	2.624	68	125	125	14	26.193
25	56	56	4	3.446	69	140	140	10	21.488
26	56	56	5	4.251	70	140	140	12	25.522
27	56	56	6	6.568	71	140	140	14	29.49
28	63	63	4	3.907	72	140	140	16	33.393
29	63	63	5	4.822	73	160	160	10	24.724
30	63	63	6	5.721	74	160	160	12	29.391
31	63	63	8	7.469	75	160	160	14	33.987
32	63	63	10	9.151	76	160	160	16	38.518
33	70	70	4	4.372	77	180	180	12	33.159
34	70	70	5	5.397	78	180	180	14	35.383
35	70	70	6	6.406	79	180	180	16	43.452
36	70	70	7	7.398	80	180	180	18	48.634
37	70	70	8	8.373	81	200	200	14	42.894
38	75	75	5	5.818	82	200	200	16	48.56
39	75	75	6	6.905	83	200	200	18	54.501
40	75	75	7	7.976	84	200	200	20	60.056
41	75	75	8	9.03	85	200	200	22	71.168
42	75	75	10	11.089	Length = 6 - 12 meters SS400 or Q235
43	80	80	5	6.211
44	80	80	6	7.376

ASTM A36 unequal angle steel bar specification:

A36 unequal angle steel specification
Item No.	Leg 1 (mm)	Leg 2 (mm)	Thickness (mm)	Weight (kg/m)	Item No.	Leg 1 (mm)	Leg 2 (mm)	Thickness (mm)	Weight (kg/m)
1	30	20	3	1.14	45	100	50	6	6.98
2	30	20	4	1.49	46	100	50	8	9.16
3	40	20	3	1.38	47	100	50	10	11.3
4	40	20	3	1.8	48	100	65	7	8.96
5	40	25	4	1.97	49	100	65	8	10.2
6	45	30	4	2.3	50	100	65	9	11.3
7	45	30	5	2.82	51	100	65	10	12.5
8	50	30	5	3.02	52	100	75	7	9.52
9	50	30	6	3.58	53	100	75	8	10.8
10	50	40	4	2.77	54	100	75	9	12.1
11	50	40	5	3.42	55	100	75	10	13.3
12	50	40	6	4.03	56	100	75	11	14.6
13	60	30	5	3.43	57	100	75	12	15.8
14	60	30	6	4.06	58	120	80	8	12.4
15	60	30	7	4.68	59	120	80	10	15.3
16	60	40	5	3.83	60	120	80	12	18.2
17	60	40	6	4.54	61	130	65	8	12.1
18	60	40	7	5.24	62	130	65	10	14.9
19	65	50	5	4.43	63	130	65	12	17.7
20	65	50	6	5.26	64	130	75	8	12.7
21	65	50	7	6.08	65	130	75	10	15.7
22	65	50	8	6.88	66	130	75	12	18.6
23	75	50	5	4.83	67	130	90	10	17
24	75	50	6	5.75	68	130	90	12	20.1
25	75	50	7	6.65	69	150	75	9	15.7
26	75	50	8	7.53	70	150	75	10	17.4
27	75	50	9	8.4	71	150	75	11	18.9
28	75	55	5	5.04	72	150	75	12	20.6
29	75	55	7	6.93	73	150	90	10	18.6
30	75	65	6	6.49	74	150	90	12	22
31	75	65	8	8.48	75	150	90	15	27.1
32	75	65	10	10.5	76	150	100	10	19.3
33	80	40	6	5.51	77	150	100	12	23
34	80	40	8	7.21	78	150	100	14	26.6
35	80	60	6	6.49	79	160	80	10	18.5
36	80	60	7	7.5	80	160	80	12	22
37	80	60	8	8.48	81	160	80	14	25.4
38	80	65	6	6.73	82	200	100	10	23.4
39	80	65	8	8.82	83	200	100	12	27.8
40	80	65	10	10.9	84	200	100	15	34.4
41	90	65	6	7.22	85	250	90	10	26.6
42	90	65	7	8.32	Material: ASTM A36 Length = 6 - 12 meters
43	90	65	8	9.44
44	90	65	10	11.7
