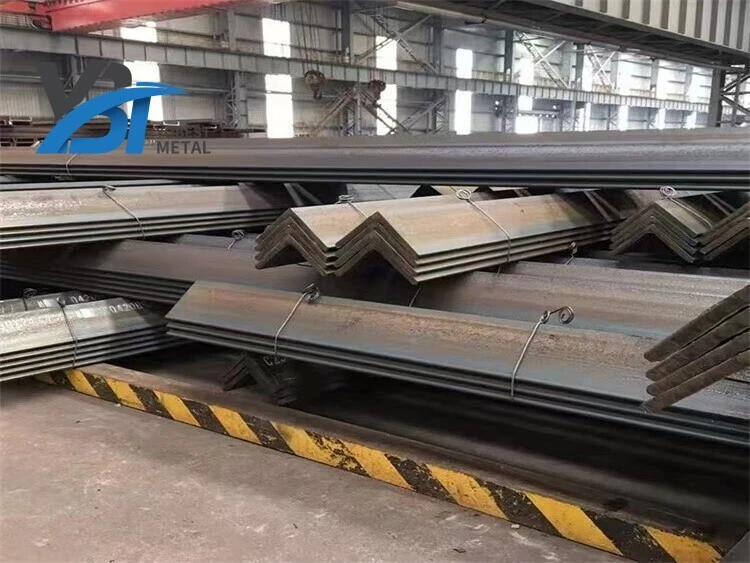

DIN ST52-2 Angle Steel

Available Carbon Steel Grades:DIN ST52-2 ，For more material grades, Please click

Payment Term:TT,L/C,etc

Price Term:Ex-Work,FOB,CNF,CFR,etc

MOQ:1Ton

Delivery Time:Usually 7-30days, or upon negotiation

If you have any questions, please feel free to contact us.

8618961806236

sale2@ybtmetalproducts.com

Request a Quote

PRODUCT DESCRIPTION

ST52 steel angle with 0.23% carbon content and 355 MPa yield point strength is suitable for weldable & supporting components. According to chemical composition & mechanical property, it is similar to S355N of EN 10025-3.

Compared with popular ASTM A36, ST52 has higher strength and excellent weldability. It is also used in everyday life and industrial applications like warehouse, equipment and so on.

Note: Although sharing similar properties, they are also a bit different. Advise us your detailed requirements, the most suitable steel grade will be told.

Product description:

Item: ST52 angle steel.
Standard: DIN 17100.
Technology: hot rolled.
Type: equal & unequal.
Surface: black or galvanized or pre-painting.
Length: 6 m, 9 m, 12 m or per your request.
Equal angle:
- Size: 20 × 20 mm to 200 × 200 mm.
- Thickness: 3 to 20 mm.
- Length: 6 m, 9 m, 12 m or per your request.
Unequal angle:
- Size: 30 × 20 mm to 250 × 90 mm.
- Thickness: 3 to 10 mm.
- Length: 6 m, 9 m, 12 m or per your request.

Chemical composition
Steel grade	Styles	Carbon, max, %	Silicon, %	Manganese, %	Phosphorus, max, %	Sulfur, max, %
ST52	Steel angles	0.23	<0.60	<1.60	0.045	0.045

Mechanical property
Steel grade	Styles	Tensile strength, ksi [MPa]	Yield point, min, ksi [MPa]	Elongation, min, δ5, %
ST52	Steel angles	75 - 92 [510 - 630]	52 [355]	21

ST52 equal steel angle sizes:

ST52 equal angle steel specification
Item	Leg 1 (mm)	Leg 2 (mm)	Thickness (mm)	Weight (kg/m)	Item	Leg 1 (mm)	Leg 2 (mm)	Thickness (mm)	Weight (kg/m)
1	20	20	3	0.889	45	80	80	7	8.525
2	20	20	4	1.145	46	80	80	8	9.658
3	25	25	3	1.124	47	80	80	10	11.874
4	25	25	4	1.459	48	90	90	6	8.35
5	30	30	3	1.373	49	90	90	7	9.656
6	30	30	4	1.786	50	90	90	8	10.946
7	35	35	3	1.578	51	90	90	10	13.476
8	35	35	4	2.072	52	90	90	12	15.94
9	35	35	5	2.551	53	100	100	6	9.366
10	40	40	3	1.852	54	100	100	7	10.83
11	40	40	4	2.422	55	100	100	8	10.276
12	40	40	5	1.976	56	100	100	10	15.12
13	44	44	3	2.002	57	100	100	12	17.898
14	44	44	4	2.638	58	100	100	14	20.611
15	38	38	3	1.719	59	100	100	16	23.257
16	38	38	4	2.261	60	110	110	7	11.928
17	48	48	3	2.19	61	110	110	8	13.532
18	48	48	4	2.889	62	110	110	10	16.69
19	48	48	5	3.572	63	110	110	12	19.782
20	50	50	3	2.332	64	110	110	14	22.809
21	50	50	4	3.059	65	125	125	8	15.504
22	50	50	5	3.77	66	125	125	10	19.133
23	50	50	6	4.465	67	125	125	12	22.692
24	56	56	3	2.624	68	125	125	14	26.193
25	56	56	4	3.446	69	140	140	10	21.488
26	56	56	5	4.251	70	140	140	12	25.522
27	56	56	6	6.568	71	140	140	14	29.49
28	63	63	4	3.907	72	140	140	16	33.393
29	63	63	5	4.822	73	160	160	10	24.724
30	63	63	6	5.721	74	160	160	12	29.391
31	63	63	8	7.469	75	160	160	14	33.987
32	63	63	10	9.151	76	160	160	16	38.518
33	70	70	4	4.372	77	180	180	12	33.159
34	70	70	5	5.397	78	180	180	14	35.383
35	70	70	6	6.406	79	180	180	16	43.452
36	70	70	7	7.398	80	180	180	18	48.634
37	70	70	8	8.373	81	200	200	14	42.894
38	75	75	5	5.818	82	200	200	16	48.56
39	75	75	6	6.905	83	200	200	18	54.501
40	75	75	7	7.976	84	200	200	20	60.056
41	75	75	8	9.03	85	200	200	22	71.168
42	75	75	10	11.089	Length = 6 - 12 meters
43	80	80	5	6.211
44	80	80	6	7.376

ST52 unequal steel sngle sizes:

ST52 unequal angle steel specification
Item no.	Leg 1 (mm)	Leg 2 (mm)	Thickness (mm)	Weight (kg/m)	Item no.	Leg 1 (mm)	Leg 2 (mm)	Thickness (mm)	Weight (kg/m)
1	30	20	3	1.14	45	100	50	6	6.98
2	30	20	4	1.49	46	100	50	8	9.16
3	40	20	3	1.38	47	100	50	10	11.3
4	40	20	3	1.8	48	100	65	7	8.96
5	40	25	4	1.97	49	100	65	8	10.2
6	45	30	4	2.3	50	100	65	9	11.3
7	45	30	5	2.82	51	100	65	10	12.5
8	50	30	5	3.02	52	100	75	7	9.52
9	50	30	6	3.58	53	100	75	8	10.8
10	50	40	4	2.77	54	100	75	9	12.1
11	50	40	5	3.42	55	100	75	10	13.3
12	50	40	6	4.03	56	100	75	11	14.6
13	60	30	5	3.43	57	100	75	12	15.8
14	60	30	6	4.06	58	120	80	8	12.4
15	60	30	7	4.68	59	120	80	10	15.3
16	60	40	5	3.83	60	120	80	12	18.2
17	60	40	6	4.54	61	130	65	8	12.1
18	60	40	7	5.24	62	130	65	10	14.9
19	65	50	5	4.43	63	130	65	12	17.7
20	65	50	6	5.26	64	130	75	8	12.7
21	65	50	7	6.08	65	130	75	10	15.7
22	65	50	8	6.88	66	130	75	12	18.6
23	75	50	5	4.83	67	130	90	10	17
24	75	50	6	5.75	68	130	90	12	20.1
25	75	50	7	6.65	69	150	75	9	15.7
26	75	50	8	7.53	70	150	75	10	17.4
27	75	50	9	8.4	71	150	75	11	18.9
28	75	55	5	5.04	72	150	75	12	20.6
29	75	55	7	6.93	73	150	90	10	18.6
30	75	65	6	6.49	74	150	90	12	22
31	75	65	8	8.48	75	150	90	15	27.1
32	75	65	10	10.5	76	150	100	10	19.3
33	80	40	6	5.51	77	150	100	12	23
34	80	40	8	7.21	78	150	100	14	26.6
35	80	60	6	6.49	79	160	80	10	18.5
36	80	60	7	7.5	80	160	80	12	22
37	80	60	8	8.48	81	160	80	14	25.4
38	80	65	6	6.73	82	200	100	10	23.4
39	80	65	8	8.82	83	200	100	12	27.8
40	80	65	10	10.9	84	200	100	15	34.4
41	90	65	6	7.22	85	250	90	10	26.6
42	90	65	7	8.32	Material: ST52 Length = 6 - 12 meters
43	90	65	8	9.44
44	90	65	10	11.7
